ROBOSTAR

Compatible with small semiconductor robots to large FPD robots.

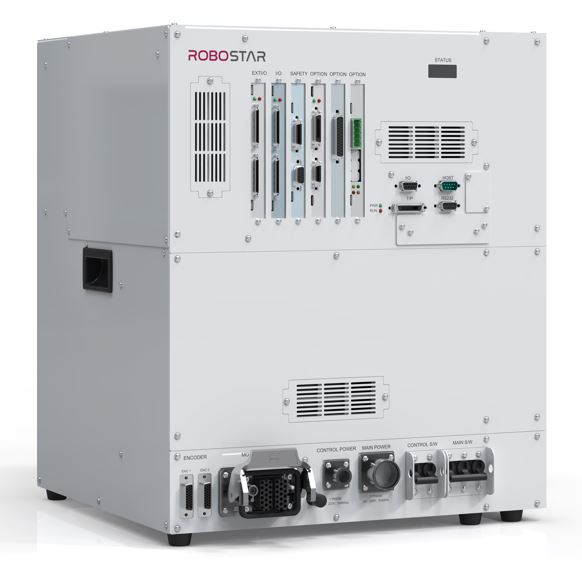

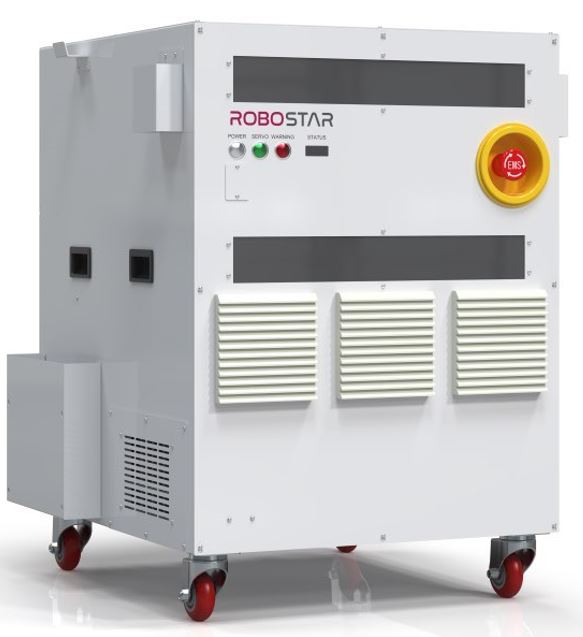

- PC-based robot controller (T1E, T1L, T1M)
- Multi-tasking
- Easy option card expansion by adopting industrial standard PCI bus
- Drive up to 11 axes by adopting a communication type servo amplifier (* T1L supports up to 15 axes)
- I/O Interface : User In/Out (32/32), Option In/Out (32/32), Analog Input (14)
- Built-in rich robot commands : user-defined functions, string manipulation functions, special functions (Align, Mapping, etc.)
- Monitoring function during operation
- Data backup and editing programs provided
- Parallel processing of robot commands during action, such as I/O and move command processing according to conditions
- Pass Motion function : FOS (factor of scale) settings
- Certification : CE MD, KCs, S-Mark, CE, KCs, Category-4 applicable
- RS-232, CC-Link, Ethernet, Ethernet I/P

Specification
Model	Robot Application	Operation Control Method	Position Feedback	Digital I/O (Input-Output)			Latch Input		Teaching Method	Robot Language
Model	Robot Application	Operation Control Method	Position Feedback	Standard I/O Board	Extension I/O Board	Latch Board I/O	Panasonic Servo	Latch Board	Teaching Method	Robot Language
T1M	Transfer Robot (WTR, LTR)	Point To Point Motion	Max. 8 Axis	Input : 32 Points / Output : 32 Points	Input : 32 Points / Output : 32 Points	Input : 24 Points / Output : 8 Point	2 Points Per Axis Align, 1 Points Per Axis Origin	Input : 16 Points	Direct Teaching (Teach Pendant), On-Line Teaching (Uni-Host)	RRL (ROBOSTAR Robot Language)
T1E	Transfer Robot (WTR, LTR)	Point To Point Motion	Max. 7 Axis	Input : 24 Points / Output : 8 Points	Input : 32 Points / Output : 32 Points (Option)	Input : 32 Points / Output : 32 Point (Option)	Latch Board : 16 Points	Driver : 2 Points per Axis	Direct Teaching (Teach Pendant), On-Line Teaching (Uni-Host)	RRL2.0 (ROBOSTAR Robot Language)
