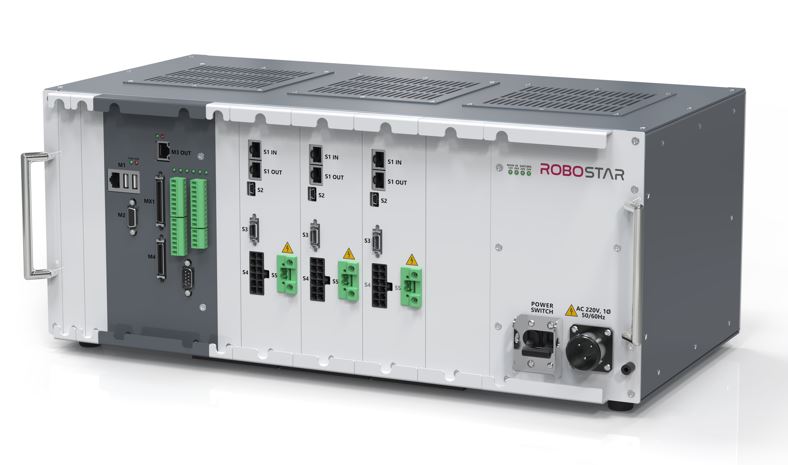

N2E

  • Convenient and safe to use
  • Tracking support
  • Various fieldbus option
  • Various certifications obtained : CE, CE MD, KCs
N2E

Features

  • - Compatible with various types of robots, including vertically articulated robots
  • - Drive of additional axes with the increased number of drive axes
  • - Easy slot-level maintenance with modular design
  • - Option slot expansion: One additional option slot available and expansion of A/D I/O connection by adding EtherCAT to I/O function
  • - Thread expansion: Up to 8 threads are available from previous 4 threads.
  • - Auto-recovery function: Increased convenience with auto-recovery function for boot failures caused by SW/HW problems
  • - Enhanced log function: Easier to identify issues with increased log content and files at the time of failure
  • - Category 3 safety design, various safety connections available
  • - Smoother and more accurate positioning with improved control cycle
  • - Disassembly, assembly, and moving by checking products moving on the conveyor
  • - Singularity avoidance: Reduced teaching time of vertically articulated robots for interpolating (straight, arc) in a small space
  • - Various fieldbus option: CC-Link, PROFIBUS, PROFINET, DeviceNet, Ethernet IP, EtherCAT

Specification

Specification

CPU/OS

Motion Control Type

Servo Drive
System

Input-Output

Teaching Type

Robot Language

Protection Function

Special Function

User

System

X86 Quad Core/RTOS

PTP, CP

8 axes

User In/Out (20 pts/20 pts)

Option In/Out (32 pts/32 pts), Maximum (64 pts/64 pts)

Direct Teaching (Teach Pendant),On-Line Teaching (Uni-Host)

RRL 2.0 (ROBOSTAR Robot Language Version 2)

IPM Error, Over Current, Over Load, Over Speed, Position Error, etc.

3D Palletizing, In-Out Parallel Processing, Real-time Velocity Control
