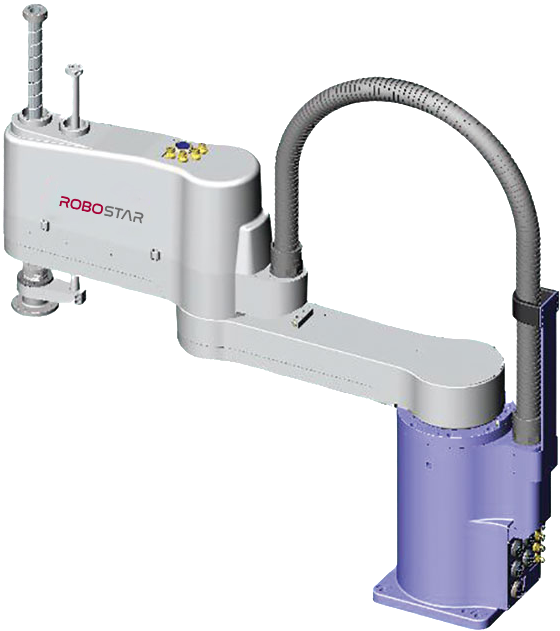

RPA70

The large standard model that supports a maximum payload of 20 kg and a maximum radius of 1,100 mm.

Inquiry
RPA70

Features

  • - High payload, manufactured with high-rigidity precision reducer and cast body
  • - Wide working radius (arm length up to 1,100 mm)

Specification

Specification

Model

Arm Length

Max. Motion Range

Max. Operating Speed
(mm/s)

Repeatability

Payload (KGF)

Cycle Time

Weight

A Arm

B Arm

Rated

Max.

RPA70-4B

700mm

±100°

±135°

4460mm/s

±0.03 mm

-

20Kg

-

-
