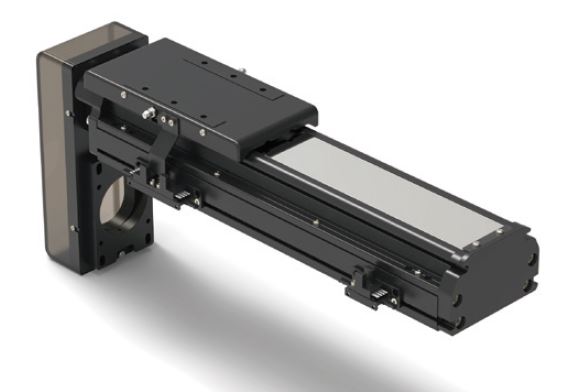

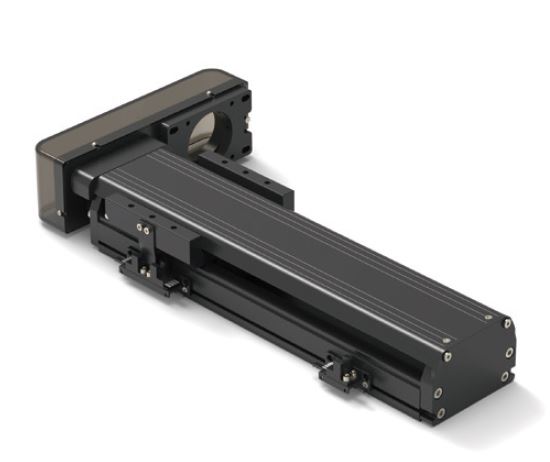

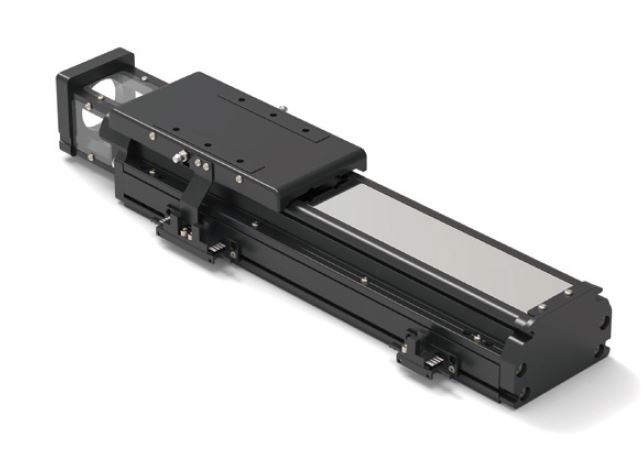

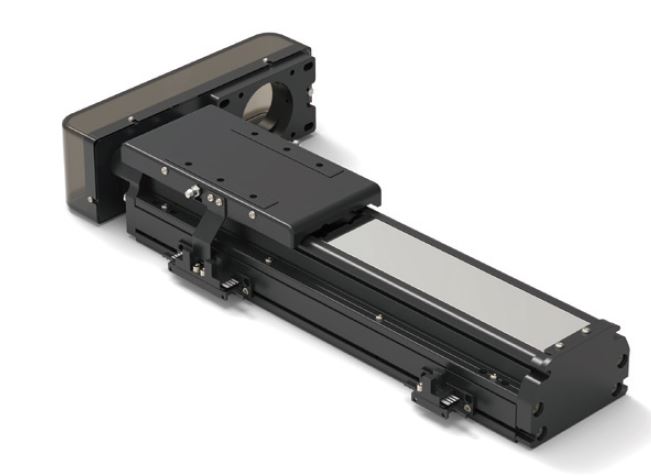

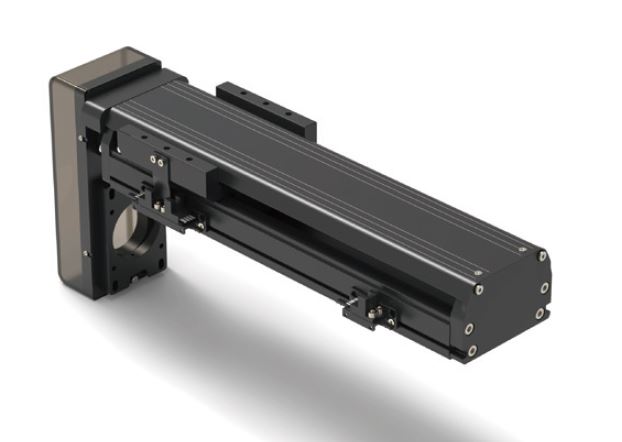

RM-90C

Compact size products using built-in guide

Inquiry
RM-90C

Features

  • - Design/fabrication with the height 30~40% lower compared to general Cartesian robots by removing the LM guide
  • - Easy fueling with the installation of a portable slider nipple
  • - High moments allowed with a wider (steel ball track) spacing compared to products with regular LM guides
  • - Supplementation of rated load and secondary moment compared to other companies by extending the length of slider blocks
  • - Improved shaft tip vibration at stop after high-speed driving. Improved setting time compared to the LM guide integrated unit of other companies
  • - Lighter aluminum base compared to the similar LM guide integrated unit

Related
Products

Specification

Specification

Model

Type

Driving Method

Body Size

Lead

Stroke (mm)

Max. Speed (mm/s)

Payload (0.3G)

AC Servo Motor (W)

Ball Screw

RM-090C-X05SS

Open/Clean

Serial

90

5

100~1000

250

45

200

Ø15*05 (C10S)

RM-090C-X10SS

Open/Clean

Serial

90

10

100~1000

500

45

200

Ø15*10 (C10S)

RM-090C-X20SS

Open/Clean

Serial

90

20

100~1000

1000

40

200

Ø15*20 (C10S)

RM-090C-X05PR (L)

Open/Clean

Parallel

90

5

100~1000

250

45

200

Ø15*05 (C10S)

RM-090C-X10PR (L)

Open/Clean

Parallel

90

10

100~1000

500

45

200

Ø15*10 (C10S)

RM-090C-X20PR (L)

Open/Clean

Parallel

90

20

100~1000

1000

40

200

Ø15*20 (C10S)

RM-090C-X05PB

Open/Clean

Parallel

90

5

100~1000

250

45

200

Ø15*05 (C10S)

RM-090C-X10PB

Open/Clean

Parallel

90

10

100~1000

500

45

200

Ø15*10 (C10S)

RM-090C-X20PB

Open/Clean

Parallel

90

20

100~1000

1000

40

200

Ø15*20 (C10S)

RM-090C-Y05SS

Open/Clean

Serial

90

5

100~1000

250

35

200

Ø15*05 (C10S)

RM-090C-Y10SS

Open/Clean

Serial

90

10

100~1000

500

25

200

Ø15*10 (C10S)

RM-090C-Y20SS

Open/Clean

Serial

90

20

100~1000

1000

15

200

Ø15*20 (C10S)

RM-090C-Y05PR (L)

Open/Clean

Parallel

90

5

100~1000

250

35

200

Ø15*05 (C10S)

RM-090C-Y10PR (L)

Open/Clean

Parallel

90

10

100~1000

500

25

200

Ø15*10 (C10S)

RM-090C-Y20PR (L)

Open/Clean

Parallel

90

20

100~1000

1000

15

200

Ø15*20 (C10S)

RM-090C-Y05PB

Open/Clean

Parallel

90

5

100~1000

250

35

200

Ø15*05 (C10S)

RM-090C-Y10PB

Open/Clean

Parallel

90

10

100~1000

500

25

200

Ø15*10 (C10S)

RM-090C-Y20PB

Open/Clean

Parallel

90

20

100~1000

1000

15

200

Ø15*20 (C10S)

RM-090C-Z05SS

Open/Clean

Serial

90

5

100~1000

250

35

200 (Brake)

Ø15*05 (C10S)

RM-090C-Z10SS

Open/Clean

Serial

90

10

100~1000

500

25

200 (Brake)

Ø15*10 (C10S)

RM-090C-Z20SS

Open/Clean

Serial

90

20

100~1000

1000

15

200 (Brake)

Ø15*20 (C10S)

RM-090C-Z05PR (L)

Open/Clean

Parallel

90

5

100~1000

250

35

200 (Brake)

Ø15*05 (C10S)

RM-090C-Z10PR (L)

Open/Clean

Parallel

90

10

100~1000

500

25

200 (Brake)

Ø15*10 (C10S)

RM-090C-Z20PR (L)

Open/Clean

Parallel

90

20

100~1000

1000

15

200 (Brake)

Ø15*20 (C10S)

RM-090C-Z05PB

Open/Clean

Parallel

90

5

100~1000

250

35

200 (Brake)

Ø15*05 (C10S)

RM-090C-Y10PB

Open/Clean

Parallel

90

10

100~1000

500

25

200 (Brake)

Ø15*10 (C10S)

RM-090C-Z20PB

Open/Clean

Parallel

90

20

100~1000

1000

15

200 (Brake)

Ø15*20 (C10S)
