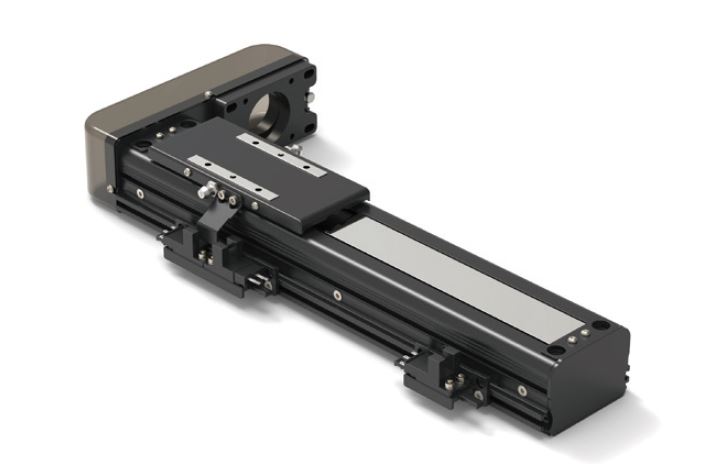

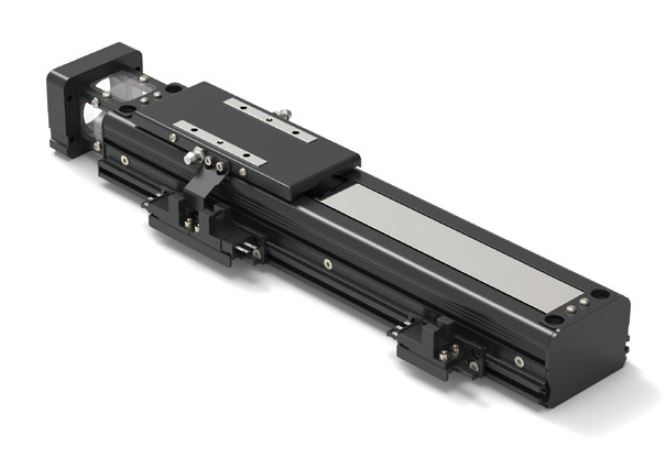

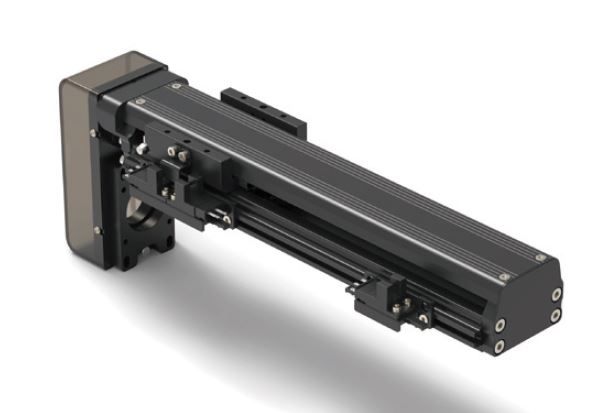

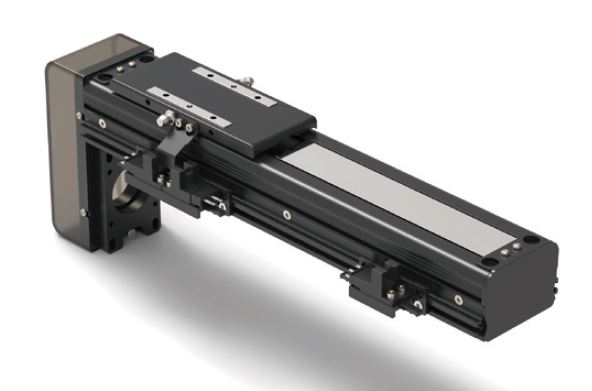

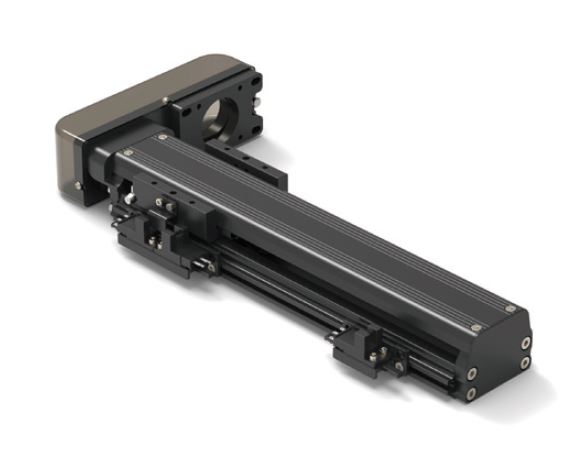

Compact size products using built-in guide

- Design/fabrication with the height 30~40% lower compared to general Cartesian robots by removing the LM guide
- Easy fueling with the installation of a portable slider nipple
- High moments allowed with a wider (steel ball track) spacing compared to products with regular LM guides
- Supplementation of rated load and secondary moment compared to other companies by extending the length of slider blocks
- Improved shaft tip vibration at stop after high-speed driving. Improved setting time compared to the LM guide integrated unit of other companies
- Lighter aluminum base compared to the similar LM guide integrated unit

Specification
Model	Type	Driving Method	Body Size	Lead	Stroke (mm)	Max. Speed (mm/s)	Payload (0.3G)	AC Servo Motor (W)	Ball Screw
RM-050C-X05SS	Open/Clean	Serial	50	5	50~500	250	18	100	Ø12*05 (C10S)
RM-050C-X10SS	Open/Clean	Serial	50	10	50~500	500	18	100	Ø12*10 (C10S)
RM-050C-X05PR (L)	Open/Clean	Parallel	50	5	50~500	250	18	100	Ø12*05 (C10S)
RM-050C-X10PR (L)	Open/Clean	Parallel	50	10	50~500	500	18	100	Ø12*10 (C10S)
RM-050C-X05PB	Open/Clean	Parallel	50	5	50~500	250	18	100	Ø12*05 (C10S)
RM-050C-X10PB	Open/Clean	Parallel	50	10	50~500	500	18	100	Ø12*10 (C10S)
RM-050C-Y05SS	Open/Clean	Serial	50	5	50~500	250	16	100	Ø12*05 (C10S)
RM-050C-Y10SS	Open/Clean	Serial	50	10	50~500	500	10	100	Ø12*10 (C10S)
RM-050C-Y05PR (L)	Open/Clean	Parallel	50	5	50~500	250	16	100	Ø12*05 (C10S)
RM-050C-Y10PR (L)	Open/Clean	Parallel	50	10	50~500	500	10	100	Ø12*10 (C10S)
RM-050C-Y05PB	Open, Clean	Parallel	50	5	50~500	250	16	100	Ø12*05 (C10S)
RM-050C-Y10PB	Open/Clean	Parallel	50	10	50~500	500	10	100	Ø12*10 (C10S)
RM-050C-Z05SS	Open/Clean	Serial	50	5	50~500	250	16	100 (Brake)	Ø12*05 (C10S)
RM-050C-Z10SS	Open/Clean	Serial	50	10	50~500	500	10	100 (Brake)	Ø12*10 (C10S)
RM-050C-Z05PR (L)	Open/Clean	Parallel	50	5	50~500	250	16	100 (Brake)	Ø12*05 (C10S)
RM-050C-Z10PR (L)	Open/Clean	Parallel	50	10	50~500	500	10	100 (Brake)	Ø12*10 (C10S)
RM-050C-Z05PB	Open/Clean	Parallel	50	5	50~500	250	16	100 (Brake)	Ø12*05 (C10S)
RM-050C-Y10PB	Open/Clean	Parallel	50	10	50~500	500	10	100 (Brake)	Ø12*10 (C10S)
