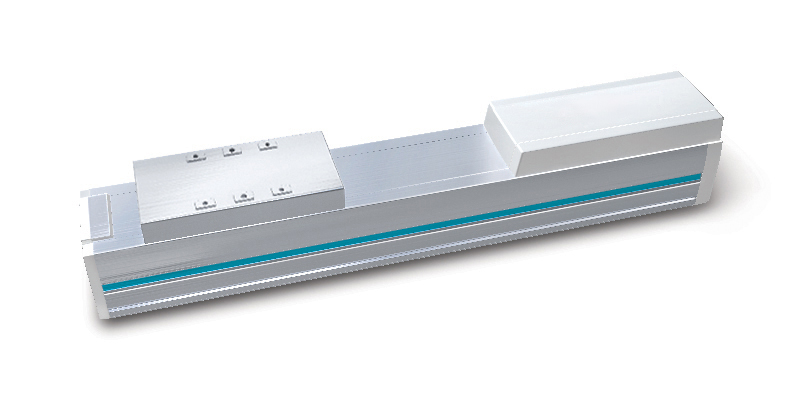

Clean type products with a sealed structure that can prevent impurities and apply a vacuum suction device
Ball Screw Lead 5mm, 10mm, 20mm (Standard type)
Base Width 90mm
Application of the tap method when installing the bottom combination

- Optimal design through structural analysis
- Optimal performance with high-rigidity, high-speed, and high-precision
- Supporting a wide range of strokes (100mm~6000mm) and payloads (5Kgf~200Kgf)
- Application of AC servo motor for reliability
- Optimization work with a robot controller for intended use
- Applicable to transfer, palletizing, screw fastening, inspection, etc.
* Options: Attachment of external photo sensors, exterior anodizing treatment in black, Ball screw & LM Raydent
** PR (Parallel Right), PL (Parallel Left)

Specification
Model	Type	Driving Method	Body Size	Lead	Stroke (mm)	Max. Speed (mm/s)	Payload		AC Servo Motor (W)	Ball Screw	LM Guide
Model	Type	Driving Method	Body Size	Lead	Stroke (mm)	Max. Speed (mm/s)	0.3G	0.5G	AC Servo Motor (W)	Ball Screw	LM Guide
RC-090-Y10SS	Clean	Serial	90	10	100~600	500	9	8	200	Ø15*10 (C7S)	NO42, 1Rail 1Block
RC-090-Y20SS	Clean	Serial	90	20	100~600	1000	6	5	200	Ø15*20 (C7S)	NO42, 1Rail 1Block
RC-090-Y10PR (L)	Clean	Parallel	90	10	100~600	500	9	8	200	Ø15*10 (C7S)	NO42, 1Rail 1Block
RC-090-Y20PR (L)	Clean	Parallel	90	20	100~600	1000	6	5	200	Ø15*20 (C7S)	NO42, 1Rail 1Block
RC-090-Z05SS	Clean	Serial	90	5	100~400	250	7	6	100 (Brake)	Ø15*05 (C7S)	NO42, 1Rail 1Block
RC-090-Z10SS	Clean	Serial	90	10	100~400	500	6	5	100 (Brake)	Ø15*10 (C7S)	NO42, 1Rail 1Block
RC-090-Z05PR (L)	Clean	Parallel	90	5	100~400	250	7	6	100 (Brake)	Ø15*05 (C7S)	NO42, 1Rail 1Block
RC-090-Z10PR (L)	Clean	Parallel	90	10	100~400	500	6	5	100 (Brake)	Ø15*10 (C7S)	NO42, 1Rail 1Block
