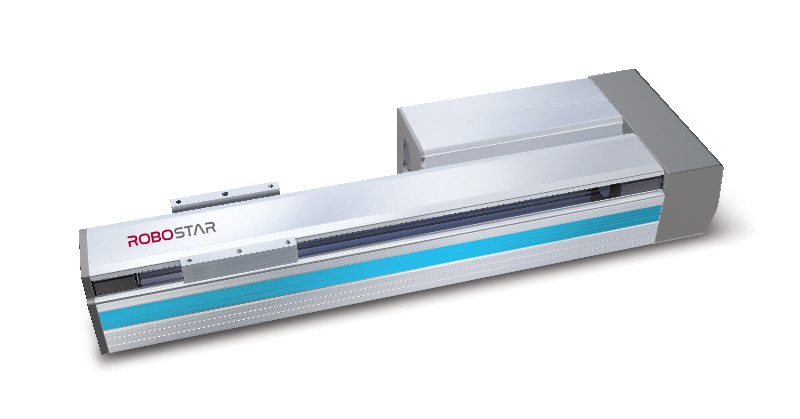

Products that can flexibly respond to changes in the work zone based on the installation site by adopting a method of fixation using a plate nut
Ball Screw Lead 5mm, 10mm, 20mm (Standard type)
Base Width 60mm
Application of the tap method when installing the bottom combination

- Optimal design through structural analysis
- Optimal performance with high-rigidity, high-speed, and high-precision
- Supporting a wide range of strokes (100mm~6000mm) and payloads (5Kgf~200Kgf)
- Application of AC servo motor for reliability
- Optimization work with a robot controller for intended use
- Applicable to transfer, palletizing, screw fastening, inspection, etc.
* Options: Attachment of external photo sensors, exterior anodizing treatment in black, Ball screw & LM Raydent
** PR (Parallel Right), PL (Parallel Left)
*** Same specifications as the RS model except for fastening method

Specification
Model	Type	Driving Method	Body Size	Lead	Stroke (mm)	Max. Speed (mm/s)	Payload		AC Servo Motor (W)	Ball Screw	LM Guide
Model	Type	Driving Method	Body Size	Lead	Stroke (mm)	Max. Speed (mm/s)	0.3G	0.5G	AC Servo Motor (W)	Ball Screw	LM Guide
RJ-060N-Y10SS	Open	Serial	60	10	100~400	500	5	4.5	100	Ø12*10 (C7S)	NO15, 1Rail 1Block
RJ-060N-Y10PR (L)	Open	Parallel	60	10	100~400	500	5	4.5	100	Ø12*10 (C7S)	NO15, 1Rail 1Block
RJ-060N-Y10PB	Open	Parallel	60	10	100~400	500	5	4.5	100	Ø12*10 (C7S)	NO15, 1Rail 1Block
RJ-060N-Z10SS	Open	Serial	60	10	100~400	500	4	3.5	100 (Brake)	Ø12*10 (C7S)	NO15, 1Rail 1Block
RJ-060N-Z10PR (L)	Open	Parallel	60	10	100~400	500	4	3.5	100 (Brake)	Ø12*10 (C7S)	NO15, 1Rail 1Block
RJ-060N-Z10PB	Open	Parallel	60	10	100~400	500	4	3.5	100 (Brake)	Ø12*10 (C7S)	NO15, 1Rail 1Block
