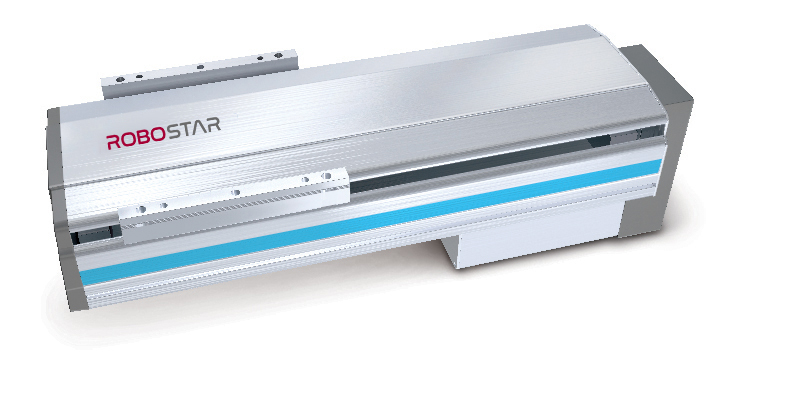

RS-210

Standard model products compatible with the rear tap, C.B based on user requirements

  • Ball Screw Lead 5mm, 10mm, 20mm (Standard type)
  • Base Width 210mm
  • Application of the tap when installing the bottom combination
Inquiry
RS-210

Features

  • - Optimal design through structural analysis
  • - Optimal performance with high-rigidity, high-speed, and high-precision
  • - Supporting a wide range of strokes (100mm~6000mm) and payloads (5Kgf~200Kgf)
  • - Application of AC servo motor for reliability
  • - Optimization work with a robot controller for intended use
  • - Applicable to transfer, palletizing, screw fastening, inspection, etc.
  • * Options: Attachment of external photo sensors, exterior anodizing treatment in black, Ball screw & LM Raydent
  • ** PR (Parallel Right), PL (Parallel Left)

Related
Products

Specification

Specification

Model

Type

Driving Method

Body Size

Lead

Stroke
(mm)

Max Speed
(mm/s)

Payload

AC Servo Motor (W)

Ball Screw

LM Guide

0.3G

0.5G

RS-210-X20SS

Open

Serial

210

20

100~1000

1000

150

110

750

Ø20*20 (C7S)

NO25, 2Rail 4Block

RS-210-X20SS (Long)

Open

Serial

210

20

1600~1800

350

150

110

750

Ø25*20 (C7S)

NO25, 2Rail 4Block

RS-210-X20PR (L)

Open

Parallel

210

20

100~1500

1000

150

110

750

Ø20*20 (C7S)

NO25, 2Rail 4Block

RS-210-X20PR (L) (Long)

Open

Parallel

210

20

1600~1800

350

150

110

750

Ø25*20 (C7S)

NO25, 2Rail 4Block

RS-210-X20PB

Open

Parallel

210

20

100~1500

1000

150

110

750

Ø20*20 (C7S)

NO25, 2Rail 4Block

RS-210-X20PB (Long)

Open

Parallel

210

20

1600~1800

350

150

110

750

Ø25*20 (C7S)

NO25, 2Rail 4Block

RS-210-Y20SS

Open

Serial

210

20

100~1500

1000

48

48

750

Ø20*20 (C7S)

NO25, 2Rail 4Block

RS-210-Y20SS (Long)

Open

Serial

210

20

1600~1800

350

48

48

750

Ø25*20 (C7S)

NO25, 2Rail 4Block

RS-210-Y20PR (L)

Open

Parallel

210

20

100~1500

1000

48

48

750

Ø20*20 (C7S)

NO25, 2Rail 4Block

RS-210-Y20PR (L) (Long)

Open

Parallel

210

20

1600~1800

350

48

48

750

Ø25*20 (C7S)

NO25, 2Rail 4Block

RS-210-Y20PB

Open

Parallel

210

20

100~1500

1000

48

48

750

Ø20*20 (C7S)

NO25, 2Rail 4Block

RS-210-Y20PB (Long)

Open

Parallel

210

20

1600~1800

350

48

48

750

Ø25*20 (C7S)

NO25, 2Rail 4Block

RS-210-Z10SS

Open

Serial

210

10

100~1000

500

80

40

750 (Brake)

Ø20*10 (C7S)

NO25, 2Rail 4Block

RS-210-Z10PR (L)

Open

Parallel

210

10

100~1000

500

80

40

750 (Brake)

Ø20*10 (C7S)

NO25, 2Rail 4Block

RS-210-Z10PB

Open

Parallel

210

10

100~1000

500

80

40

750 (Brake)

Ø20*10 (C7S)

NO25, 2Rail 4Block
