Product

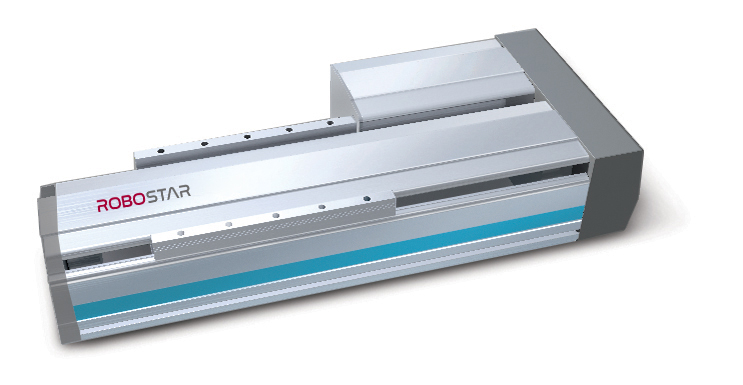

RS-095

Standard model products compatible with the rear tap, C.B based on user requirements

  • Ball Screw Lead 5mm, 10mm, 20mm (Standard type)
  • Base Width 95mm
  • Application of the tap when installing the bottom combination
Inquiry
RS-095

Features

  • - Optimal design through structural analysis
  • - Optimal performance with high-rigidity, high-speed, and high-precision
  • - Supporting a wide range of strokes (100mm~6000mm) and payloads (5Kgf~200Kgf)
  • - Application of AC servo motor for reliability
  • - Optimization work with a robot controller for intended use
  • - Applicable to transfer, palletizing, screw fastening, inspection, etc.
  • * Options: Attachment of external photo sensors, exterior anodizing treatment in black, Ball screw & LM Raydent
  • ** PR (Parallel Right), PL (Parallel Left)

Related
Products

Specification

Specification

Model

Type

Driving Method

Body Size

Lead

Stroke
(mm)

Max. Speed
(mm/s)

Payload

AC Servo Motor (W)

Ball Screw

LM Guide

0.3G

0.5G

RS-095-X10SS

Open

Serial

95

10

100~1000

500

60

50

200

Ø15*10 (C7S)

NO20, 1Rail 2Block

RS-095-X20SS

Open

Serial

95

20

100~1000

1000

25

25

200

Ø15*20 (C7S)

NO20, 1Rail 2Block

RS-095-X10PR (L)

Open

Parallel

95

10

100~1000

500

60

50

200

Ø15*10 (C7S)

NO20, 1Rail 2Block

RS-095-X20PR (L)

Open

Parallel

95

20

100~1000

1000

25

25

200

Ø15*20 (C7S)

NO20, 1Rail 2Block

RS-095-X10PB

Open

Parallel

95

10

100~1000

500

60

50

200

Ø15*10 (C7S)

NO20, 1Rail 1Block

RS-095-X20PB

Open

Parallel

95

20

100~1000

1000

25

25

200

Ø15*20 (C7S)

NO20, 1Rail 2Block

RS-095-Y10SS

Open

Serial

95

10

100~700

500

20

18

200

Ø15*10 (C7S)

NO20, 1Rail 1Block

RS-095-Y20SS

Open

Serial

95

20

100~700

1000

13

12

200

Ø15*20 (C7S)

NO20, 1Rail 1Block

RS-095-Y10PR (L)

Open

Parallel

95

10

100~700

500

20

18

200

Ø15*10 (C7S)

NO20, 1Rail 1Block

RS-095-Y20PR (L)

Open

Parallel

95

20

100~700

1000

13

12

200

Ø15*20 (C7S)

NO20, 1Rail 1Block

RS-095-Y10PB

Open

Parallel

95

10

100~700

500

20

18

200

Ø15*10 (C7S)

NO20, 1Rail 1Block

RS-095-Y20PB

Open

Parallel

95

20

100~700

1000

13

12

200

Ø15*20 (C7S)

NO20, 1Rail 1Block

RS-095-Z05SS

Open

Serial

95

5

100~700

250

25

25

200 (Brake)

Ø15*05 (C7S)

NO20, 1Rail 1Block

RS-095-Z10SS

Open

Serial

95

10

100~700

500

20

18

200 (Brake)

Ø15*10 (C7S)

NO20, 1Rail 1Block

RS-095-Z05PR (L)

Open

Parallel

95

5

100~700

250

25

25

200 (Brake)

Ø15*05 (C7S)

NO20, 1Rail 1Block

RS-095-Z10PR (L)

Open

Parallel

95

10

100~700

500

20

18

200 (Brake)

Ø15*20 (C7S)

NO20, 1Rail 1Block

RS-095-Z05PB

Open

Parallel

95

5

100~700

250

25

25

200 (Brake)

Ø15*05 (C7S)

NO20, 1Rail 1Block

RS-095-Z10PB

Open

Parallel

95

10

100~700

500

20

18

200 (Brake)

Ø15*20(C7S)

NO20, 1Rail 1Block
