S10

S10

本系列为’24年型新产品，实现了业界最高规格精密度、世界最高水平的传送带流动紧固。

Payload : 10Kg
Arm Length : 600mm, 700mm, 800mm

咨询 (采购 /AS)

S10

Repeatability

±0.015 mm

Cycle Time

0.34s

Payload

10Kg

Specification

Specification
Model	Arm Length	Max. Motion Range		Max. Operating Speed (mm/s)	Repeatability	Payload (KGF)		Cycle Time	Weight
Model	Arm Length	A Arm	B Arm	Max. Operating Speed (mm/s)	Repeatability	Rated	Max.	Cycle Time	Weight
S10-D06	600mm	±130°	±140°	9,020mm/s	±0.015 mm	5Kg	10Kg	0.34s	38Kg
S10-V06	600mm	±130°	±140°	8,961mm/s	±0.015 mm	5Kg	10Kg	0.34s	48Kg
S10-D07	700mm	±130°	±140°	9,800mm/s	±0.015 mm	5Kg	10Kg	0.34s	39Kg
S10-V07	700mm	±130°	±140°	9,736mm/s	±0.015 mm	5Kg	10Kg	0.34s	49Kg
S10-D08	800mm	±130°	±140°	10,500mm/s	±0.015 mm	5Kg	10Kg	0.34s	40Kg
S10-V08	800mm	±130°	±140°	10,424mm/s	±0.015 mm	5Kg	10Kg	0.34s	51Kg

Downloads

图纸 (2D)

DWG DWG DWG

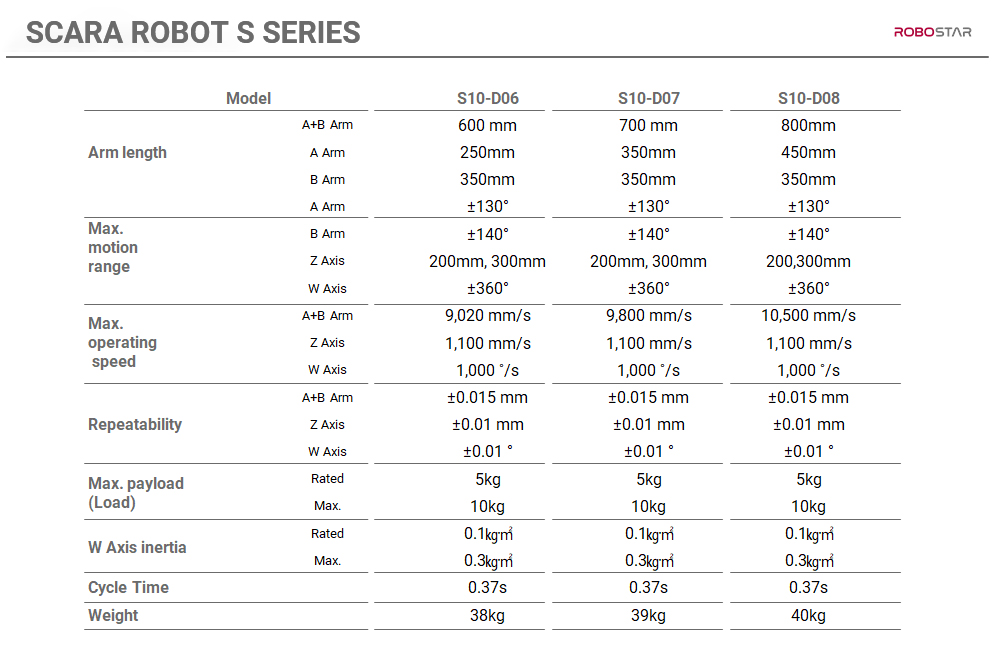

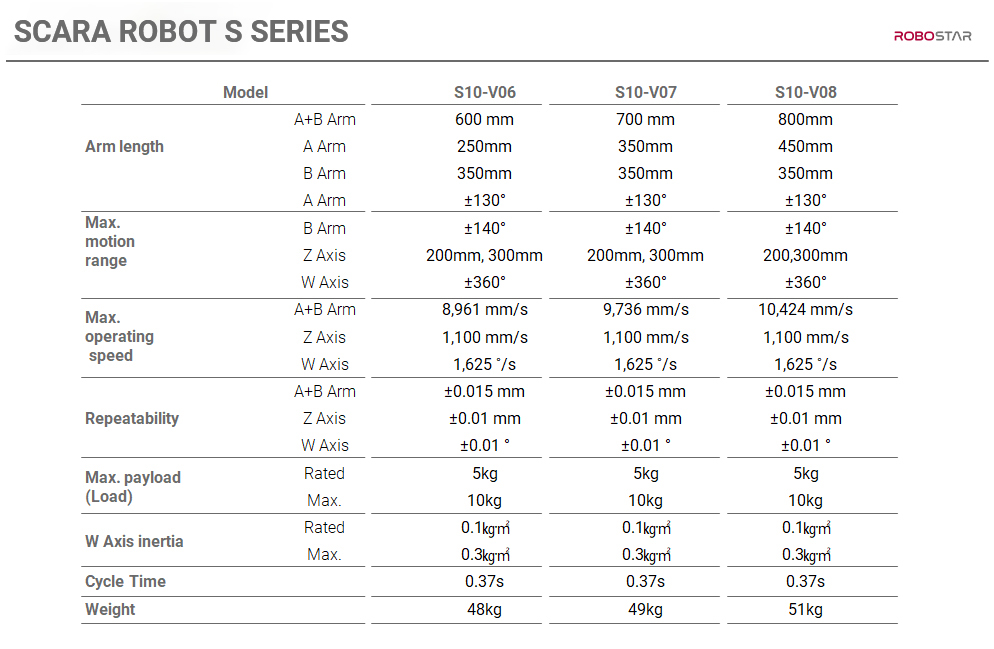

Data Sheet

JPG JPG
