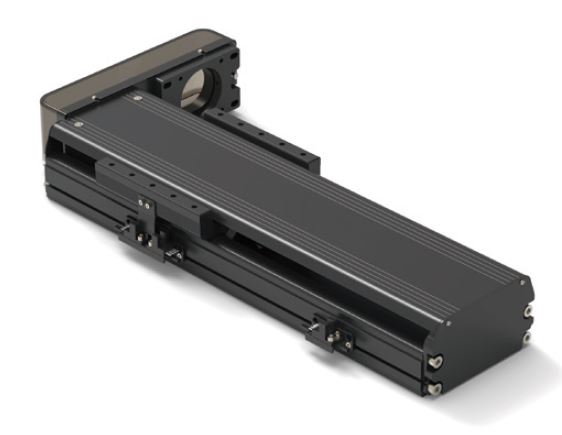

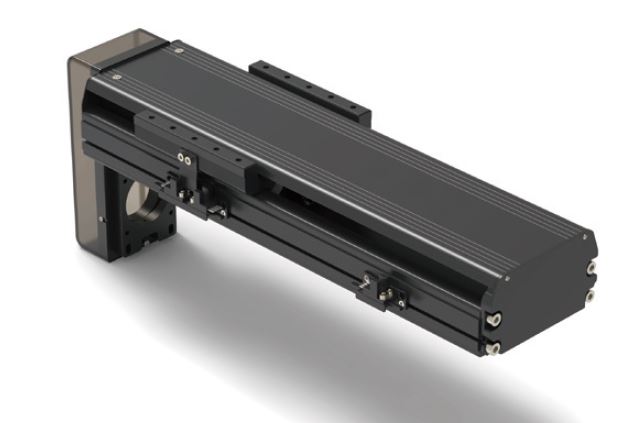

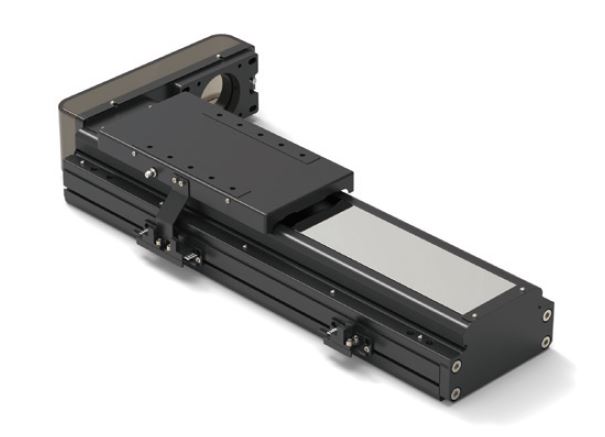

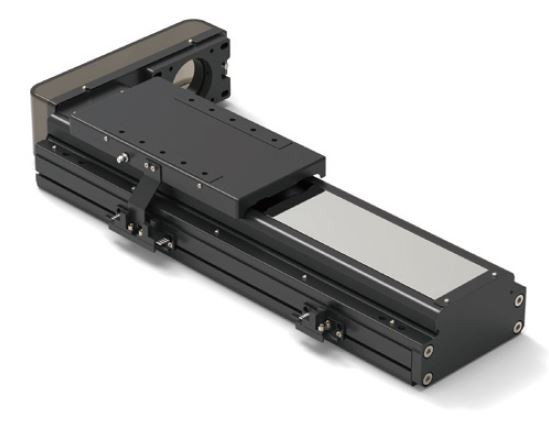

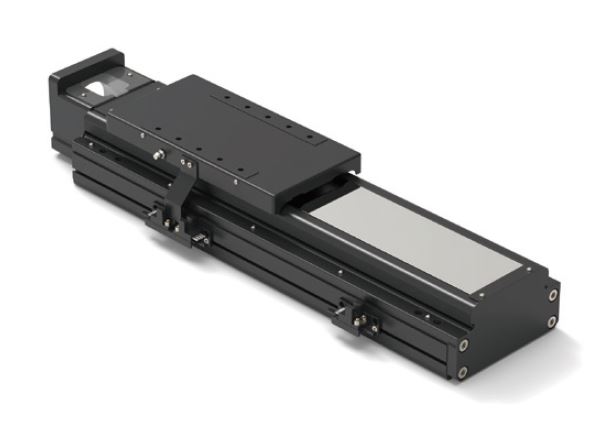

RM-120C

本系列为使用Built-in Guide/内嵌式导轨的紧凑型产品。

咨询 (采购 /AS)
RM-120C

Features

  • - 去除LM Guide，设计/制作高度比普通直角坐标机器人低30~40%；
  • - 安装可移动Slider nipple，注油操作简单易行；
  • - 相较一般使用LM Guide的产品具备更良好的空间，可承受更高的力矩。延长滑块长度后可有效改善额定荷载&2次力矩标准；
  • - 有效改善高速行进后停止轴末端产生的振动现象，相较其他公司生产的LM Guide一体化Unit，可明显改善Setting Time（惯性力矩）；
  • - 比起相同等级的LM Guide一体化产品，Base采用铝制材料制作，实现轻量化。

Related
Products

Specification

Specification

Model

Type

驱动方式

宽度

导程

Stroke (mm)

Max. Speed (mm/s)

Payload (0.3G)

AC Servo Motor (W)

Ball Screw

RM-120C-X05SS

Open/Clean

直联

120

5

100~1200

250

75

400

Ø15*05 (C10S)

RM-120C-X10SS

Open/Clean

直联

120

10

100~1200

500

75

400

Ø15*10 (C10S)

RM-120C-X20SS

Open/Clean

直联

120

20

100~1200

1000

50

400

Ø15*20 (C10S)

RM-120C-X05PR (L)

Open/Clean

并联

120

5

100~1200

250

75

400

Ø15*05 (C10S)

RM-120C-X10PR (L)

Open/Clean

并联

120

10

100~1200

500

75

400

Ø15*10 (C10S)

RM-120C-X20PR (L)

Open/Clean

并联

120

20

100~1200

1000

50

400

Ø15*20 (C10S)

RM-120C-X05PB

Open/Clean

并联

120

5

100~1200

250

75

400

Ø15*05 (C10S)

RM-120C-X10PB

Open/Clean

并联

120

10

100~1200

500

75

400

Ø15*10 (C10S)

RM-120C-X20PB

Open/Clean

并联

120

20

100~1200

1000

50

400

Ø15*20 (C10S)

RM-120C-Y05SS

Open/Clean

直联

120

5

100~1200

250

75

400

Ø15*05 (C10S)

RM-120C-Y10SS

Open/Clean

直联

120

10

100~1200

500

75

400

Ø15*10 (C10S)

RM-120C-Y20SS

Open/Clean

直联

120

20

100~1200

1000

50

400

Ø15*20 (C10S)

RM-120C-Y05PR (L)

Open/Clean

并联

120

5

100~1200

250

75

400

Ø15*05 (C10S)

RM-120C-Y10PR (L)

Open/Clean

并联

120

10

100~1200

500

75

400

Ø15*10 (C10S)

RM-120C-Y20PR (L)

Open/Clean

并联

120

20

100~1200

1000

50

400

Ø15*20 (C10S)

RM-120C-Y05PB

Open/Clean

并联

120

5

100~1200

250

75

400

Ø15*05 (C10S)

RM-120C-Y10PB

Open/Clean

并联

120

10

100~1200

500

75

400

Ø15*10 (C10S)

RM-120C-Y20PB

Open/Clean

并联

120

20

100~1200

1000

50

400

Ø15*20 (C10S)

RM-120C-Z05SS

Open/Clean

直联

120/p>

5

100~1200

250

45

400 (Brake)

Ø15*05 (C10S)

RM-120C-Z10SS

Open/Clean

直联

120

10

100~1200

500

35

400 (Brake)

Ø15*10 (C10S)

RM-120C-Z20SS

Open/Clean

直联

120

20

100~1200

1000

20

400 (Brake)

Ø15*20 (C10S)

RM-120C-Z05PR (L)

Open/Clean

并联

120

5

100~1200

250

45

400 (Brake)

Ø15*05 (C10S)

RM-120C-Z10PR (L)

Open/Clean

并联

120

10

100~1200

500

35

400 (Brake)

Ø15*10 (C10S)

RM-120C-Z20PR (L)

Open/Clean

并联

120

20

100~1200

1000

20

400 (Brake)

Ø15*20 (C10S)

RM-120C-Z05PB

Open/Clean

并联

120

5

100~1200

250

45

400 (Brake)

Ø15*05 (C10S)

RM-120C-Y10PB

Open/Clean

并联

120

10

100~1200

500

35

400 (Brake)

Ø15*10 (C10S)

RM-120C-Z20PB

Open/Clean

并联

120

20

100~1200

1000

20

400 (Brake)

Ø15*20 (C10S)
